Beschreibung

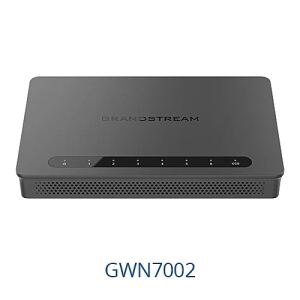

The GWN7000 Series are Multi-WAN Gigabit VPN routers with built-in firewalls that allow businesses to build comprehensive wired, wireless and VPN networks for one or many locations.
Auf einen Blick
| Ethernet-WAN | Ja |
|---|---|
| SFP-WAN | Ja |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 4 |
| Power over Ethernet (PoE)-Anschlüsse | 2 |
| Menge der SFP-Modul-Steckplätze | 2 |
| Anzahl der USB-Anschlüsse | 1 |
Merkmale
- 1x GbE RJ45 port with IEEE 802.3af/at PoE Input and 2x GbE RJ45 ports with 48V Passive PoE output or IEEE802.3af (GWN7002/GWN7003)
- Supports multiple Gigabit RJ45 ports and Gigabit SFP ports
- Built-in VPN support allows easy access to corporate networks for remote employees
- Multiple WAN ports with load balancing and failover to maximize connection reliability
- Rich firewall features including DDNS, port forwarding, DMZ, UPnP, Anti-Dos, traffic rules, NAT and ALG
- Supports application/protocol monitoring and traffic statistics with Deep Packet Inspection (DPI)
- Advanced QoS to ensure real-time performance of low-latency applications
- Supports application, URL,DNS, and web content filtering to block access from unsecure contents
- Embedded controller can manage itself and up to 150 GWN APs; GWN.Cloud offers a free cloud management platform for unlimited routers and GWN APs
Produktbeschreibung
GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.
GWN Manager is a on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.
Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.
Alle technischen Daten anzeigen (48 Angaben)
WAN-Verbindung
| Ethernet-WAN | Ja |
|---|---|
| SFP-WAN | Ja |
Anschlüsse und Schnittstellen
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 4 |
|---|---|
| Power over Ethernet (PoE)-Anschlüsse | 2 |
| Menge der SFP-Modul-Steckplätze | 2 |
| Anzahl der USB-Anschlüsse | 1 |
| USB-Version | 2.0 |
| DC-Anschluss | Ja |
Netzwerk
| Ethernet Schnittstellen Typ | 2.5 Gigabit Ethernet, Gigabit Ethernet |
|---|---|
| Portweiterleitung | Ja |
| Durchsatz | 2,2 Gbit/s |
| Netzstandard | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Statische Route | Ja |
Protokolle
| Unterstützte Netzwerkprotokolle | IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab |
|---|
Management-Funktionen
| Web-basiertes Management | Ja |
|---|---|
| Quality of Service (QoS) Unterstützung | Ja |
Sicherheit
| NEtzwerkadressenübersetzung (NAT) | Ja |
|---|---|
| Unterstützte Sicherheitsalgorithmen | IPSec |
| Anzahl VPN-Tunnels | 50 |
| IP-Adressen Filter | Ja |
| URL-Filterung | Ja |
| NAT Funktionalität | 30K NAT sessions |
| VPN Unterstützung | SSL VPN Server / Client-to-Site • IPsec VPN Client-to-Site / Site-to-Site • PPTP VPN Server / Clien-to-Site • L2TP Client-to-Site • WireGuard (pending) • IPSec Encryption: DES, 3DES, AES • IPSec Authentication: MD5, SHA-1, SHA2-256 • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14 • IPSec Protocols: ESP • IPSec NAT Traversal • SSL VPN Encryption: AES, DES • SSL Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512 • SSL VPN Certificate: RSA • PPTP Encrpytion: MPPE 40-bit, 128-bit, IPSec • PPTP/L2TP Authentication: MS-CHAPv1/2 |
Design
| Produktfarbe | Schwarz |
|---|---|
| Wandmontage | Ja |
| LED-Anzeigen | Ja |
Energie
| Energiequelle | Gleichstrom |
|---|---|
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Ausgangsspannung | 24 V |
| Ausgangsstrom | 1 A |
| Stromverbrauch (typisch) | 24 W |
| Energie Über Ethernet (PoE) Unterstützung | Ja |
Merkmale
| Eingebauter Prozessor | Ja |
|---|---|
| Prozessor-Taktfrequenz | 1000 MHz |
| Flash-Speicher | 256 MB |
| RAM-Speicher | 256 MB |
| Zertifizierung | FCC, CE, RCM, IC, UKCA |
Gewicht und Abmessungen
| Breite | 210 mm |
|---|---|
| Tiefe | 130 mm |
| Höhe | 35 mm |
| Gewicht | 505 g |
Betriebsbedingungen
| Temperaturbereich in Betrieb | 0 - 40 °C |
|---|---|
| Temperaturbereich bei Lagerung | -30 - 60 °C |
| Luftfeuchtigkeit in Betrieb | 10 - 90% |
Lieferumfang
| AC-Netzadapter | Ja |
|---|---|
| Schnellinstallationsanleitung | Ja |
| Mitgelieferte Kabel | LAN (RJ-45) |
Technische Daten laut Hersteller. Änderungen und Irrtümer vorbehalten.
Merkmale
| Produkteigenschaft | Wert |
|---|---|
| AC-Netzadapter: | Ja |
| Anschlüsse: | DC-Eingang |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45): | 4 |
| Anzahl Power over Ethernet (PoE) Anschlüsse: | 2 |
| Anzahl VPN-Tunnels: | 50 |
| Anzahl der USB-Anschlüsse: | 1 |
| Ausgangsspannung: | 24 V |
| Ausgangsstrom: | 1 A |
| Breite: | 210 mm |
| Eingebauter Prozessor: | Ja |
| Energiequelle: | Gleichstrom |
| Ethernet Schnittstellen Typ: | 2.5 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet-WAN: | Ja |
| Farbe: | Schwarz |
| Flash-Speicher: | 256 MB |
| Gewicht: | 505 g |
| Höhe: | 35 mm |
| IP-Adressen Filter: | Ja |
| Statische Route: | Ja |
| Durchsatz: | 2,2 Gbit/s |
| NAT Funktionalität: | 30K NAT sessions |
| SFP-WAN: | Ja |
| Menge SFP-Modul-Steckplätze: | 2 |
| Mitgelieferte Kabel: | LAN (RJ-45) |
| Netzstandard: | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Netzwerkadressenübersetzung (NAT): | Ja |
| Portweiterleitung: | Ja |
| Power over Ethernet (PoE): | Ja |
| Prozessor-Taktfrequenz: | 1000 MHz |
| Quality of Service (QoS) Support: | Ja |
| Speicherkapazität: | 256 MB |
| Tiefe: | 130 mm |
| URL-Filterung: | Ja |
| USB-Hub-Version: | 2.0 |
| Unterstützte Netzwerkprotokolle: | IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab |
| Unterstützte Sicherheitsalgorithmen: | IPSec |
| Wandmontage: | Ja |
| Web-basiertes Management: | Ja |
| Versandgewicht: | 0,73 kg |
| Artikelgewicht: | 0,51 kg |
